Bracket Light

from £196.00

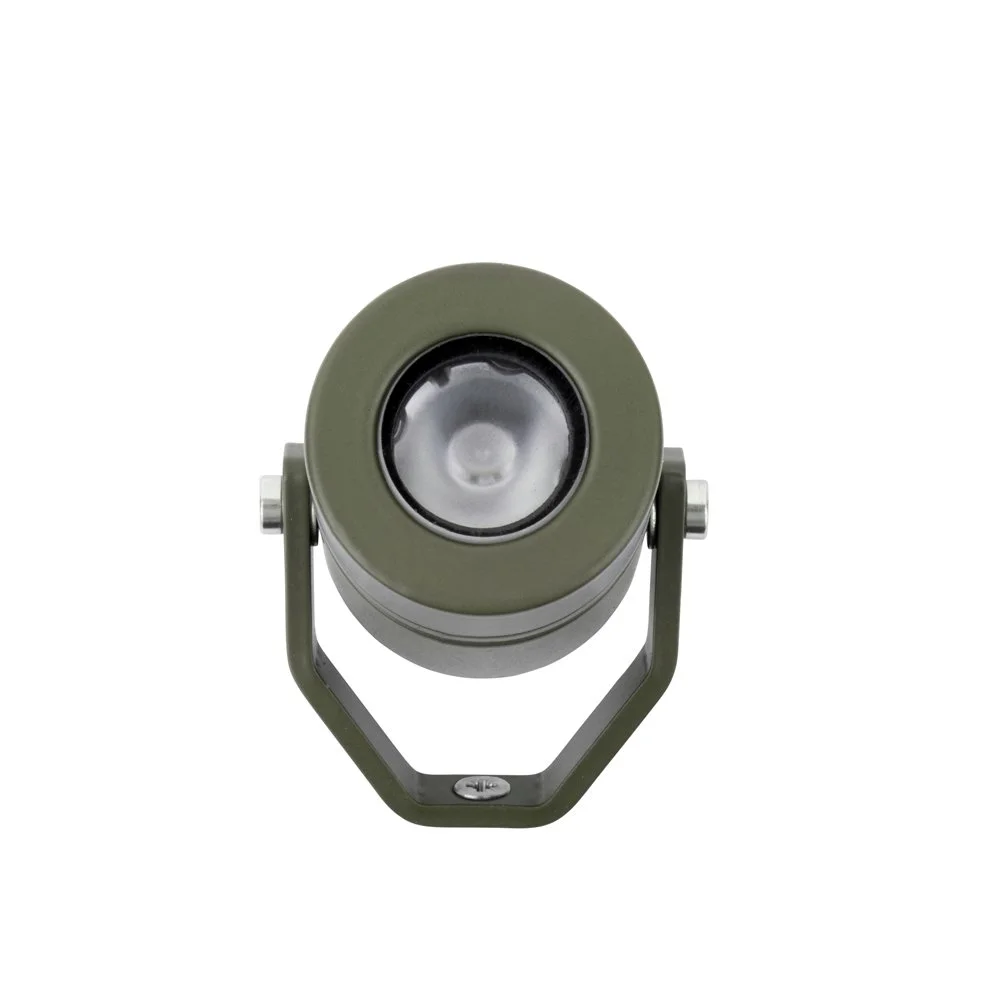

The LV-801 bracket light offers 90º elevation x 360º rotational adjustment via the mounting bracket, and is completely modular in design. This small light can be mounted to hard surfaces as an uplight or downlight on walls or fences or can be specified as a tree mount light when used with our dual thread single tree screw.

This truly is a fixture for life!

Light Visuals products are made to order. Please allow 4-6 weeks for delivery of this product, or click here to enquire about current lead times.

Spec sheet coming soon!

The LV-801 bracket light offers 90º elevation x 360º rotational adjustment via the mounting bracket, and is completely modular in design. This small light can be mounted to hard surfaces as an uplight or downlight on walls or fences or can be specified as a tree mount light when used with our dual thread single tree screw.

This truly is a fixture for life!

Light Visuals products are made to order. Please allow 4-6 weeks for delivery of this product, or click here to enquire about current lead times.

Spec sheet coming soon!

Finish:
Colour temperature:
Beam angle:

• Designed, manufactured, and hand-assembled in England

• 316L stainless steel construction

• Class III (SELV)

• Wiring to be in (SERIES)

• Requires a remote (constant current) LED driver 1050mA maximum

• 350mA = 1.2w, 700mA = 2.4w, 1050mA =3w drivers can be used

• Forward voltage: 3.2v DC

• Colour temperatures: 2700K or 3000K

• Light source: Cree® XP-L (Light Visuals proprietary interchangeable LED module)

• CRI 90+

• 90lm@350mA - 300lm@1050mA (Typical)

• Dimmable 0-10V

• Beam choice; 10º, 18º, 32º, 42º, 60º interchangeable colour coded high efficiency PMMA TIR optics

• IP68 (submersible)

• 1m 2 core HO5RN-F rubber cable (can be supplied up to 10m at additional cost)

• 10 year warranty on brass, stainless steel, powder coated stainless steel

• Product code: LV-801
