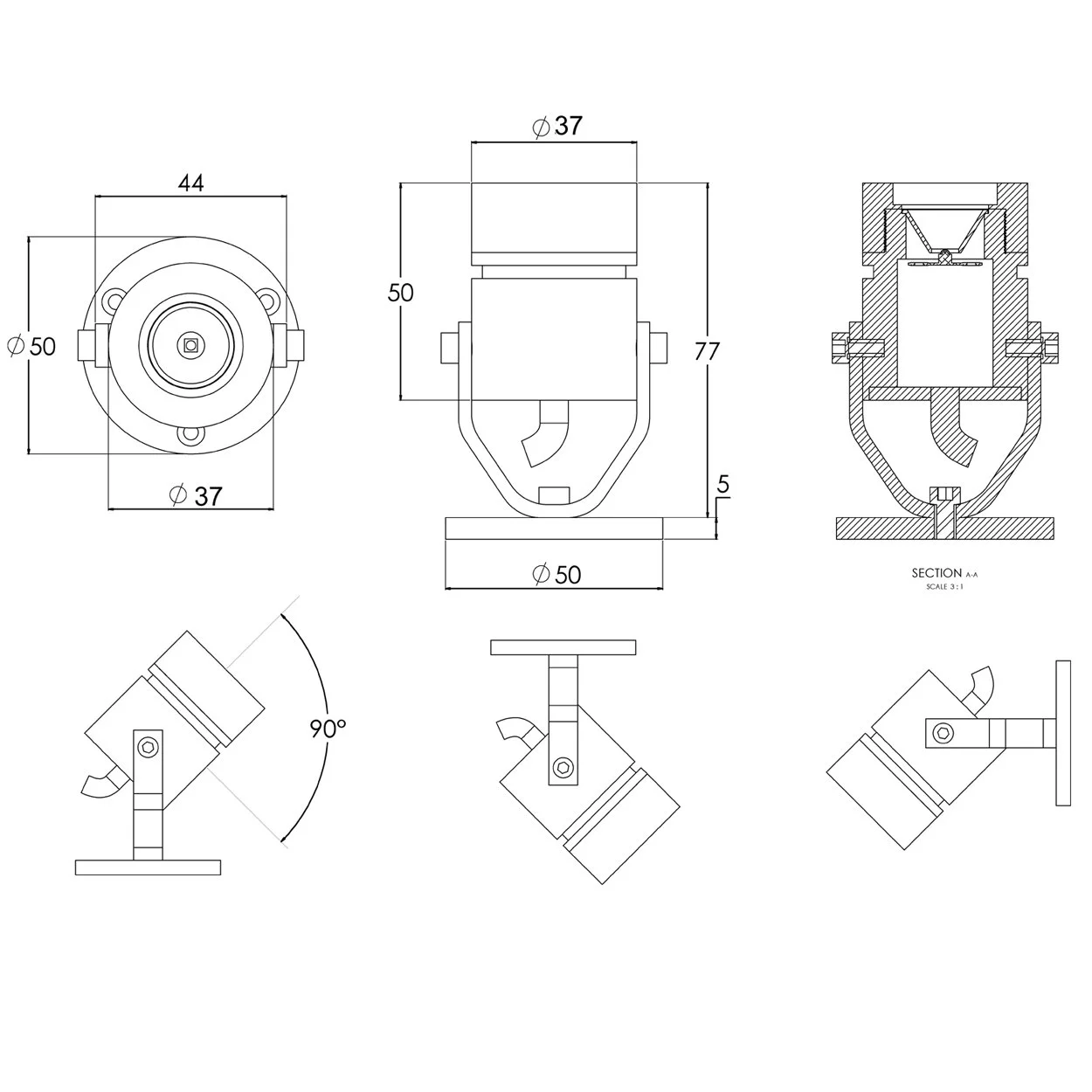

bracket base light dimension drawing lv-803 - Light Visuals

Bracket Base Light

from £208.00

The Bracket Base light LV-SS803 is a low-voltage adjustable compact light fitting with a 50mm round plate for secure fixing to floors or walls via the three fixing holes.
Available in 316L stainless steel or 316L powder coat colours.

Light Visuals products are made to order. (Please allow 2-4 weeks for delivery).

Finish:
Colour temperature:
Beam angle:
Quantity:
Add To Basket

Bracket Base Light

from £208.00

The Bracket Base light LV-SS803 is a low-voltage adjustable compact light fitting with a 50mm round plate for secure fixing to floors or walls via the three fixing holes.
Available in 316L stainless steel or 316L powder coat colours.

Light Visuals products are made to order. (Please allow 2-4 weeks for delivery).

Finish:
Colour temperature:
Beam angle:
Quantity:
Add To Basket

• Class III (SELV)

• Wiring to be in (SERIES)

• Requires a remote (constant current) LED driver 1050mA maximum

• 350mA, 700mA and 1050mA drivers can be used

• Forward voltage: 2.82v DC @1050mA (Typical)

• Colour temperatures: 2700K or 3000K

• Light source: Cree XP-L (Light Visuals proprietary interchangeable LED module)

• CRI 90+

• 90lm@350mA - 300lm@1050mA (Typical)

• Dimmable 0-10V

• Beam choice; 10º, 18º, 32º ,42º, 60º, 47x8º Elliptical linear (colour coded and interchangeable)

• IP68 (submersible)

• 1m 2 core HO5RN-F rubber cable (can be supplied up to 10m at additional cost)

• 10-year warranty on brass, copper, stainless steel, powder-coated stainless steel

• 5-year warranty led board

• PVC installation sleeve supplied

• Product code: LV-SS803
