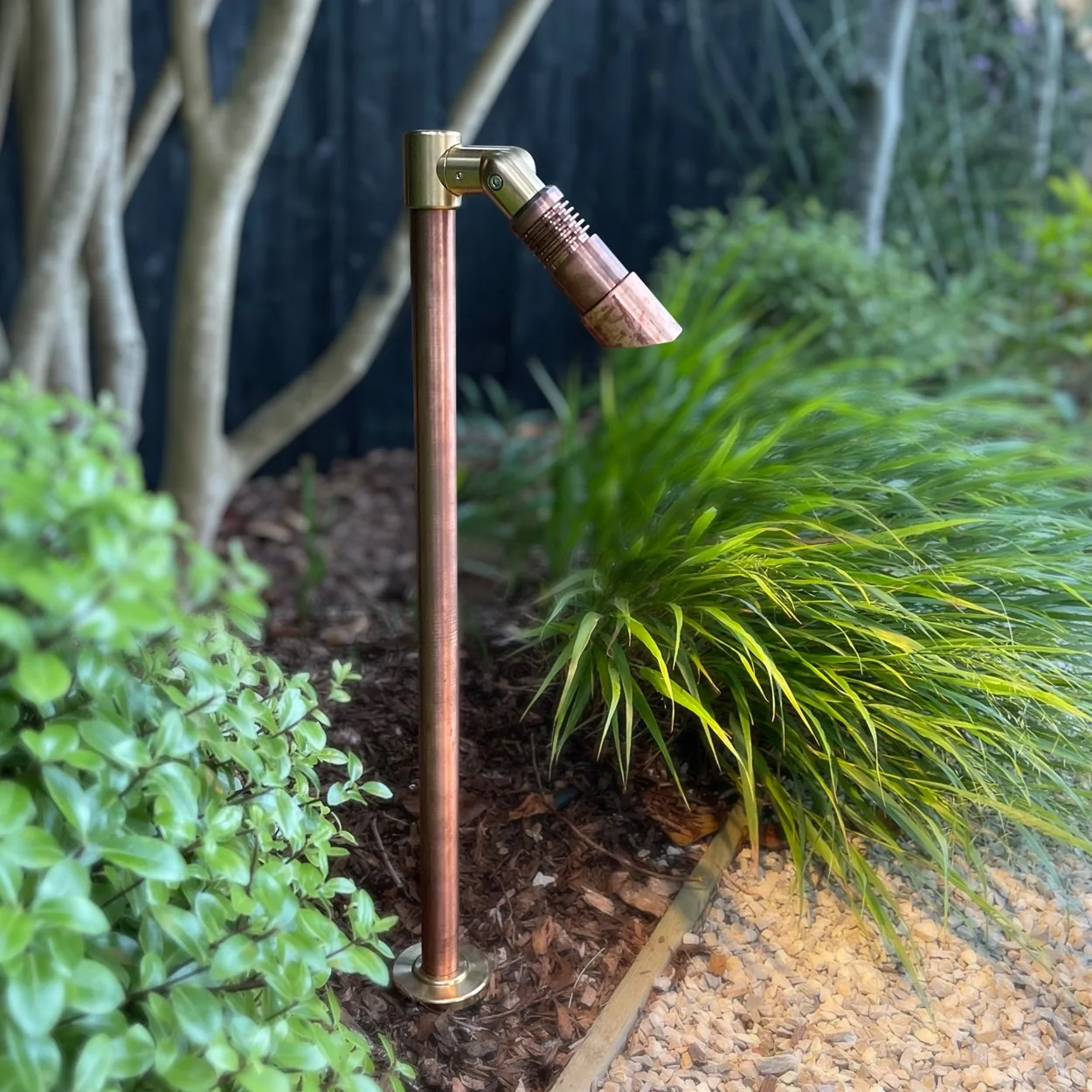

Light Visuals solid copper pole mount adjustable spot path down light in a mature garden

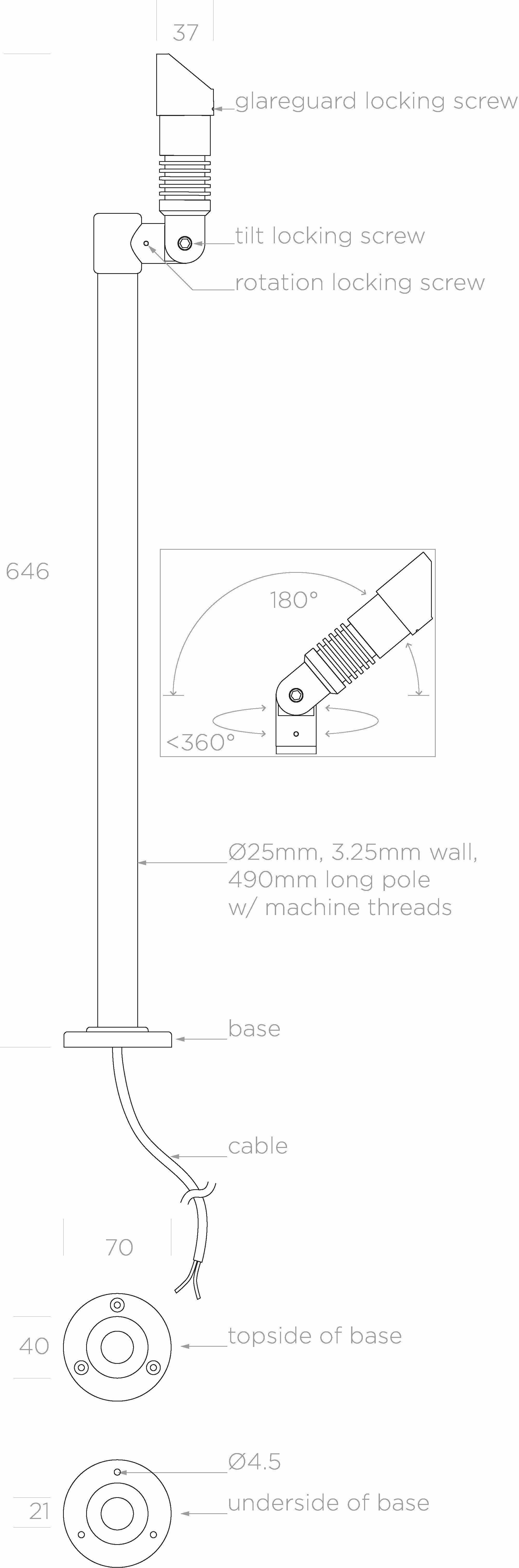

Light Visuals single pole spot light dimension drawing
Light Visuals recessed light in full modular exploded view
Cree xhp50 led light visuals led board light engine
Cree landscape lighting beam angle optics colour coded Light Visuals
block diagram for Light Visuals series wired constant current circuits

Single Pole Light Surface Mount 490

from £396.00

The Single Pole Light Surface Mount is an ultra-compact luminaire which has been designed around the Light Visuals replaceable led board. It features a stylish design and is one of the most robust garden and landscape lighting tools available today. All components are modular and can be replaced or upgraded in the future. This product features a heavy-duty knuckle with both horizontal and vertical infinite adjustability. It comes equipped as standard with a drainage glare guard and is the perfect solution for illuminating paths trees and shrubs.

This truly is a fixture for life!

Light Visuals products are made to order. Please allow 4-6 weeks for delivery of this product, or click here to enquire about current lead times.

Spec sheet coming soon!

The Single Pole Light Surface Mount is an ultra-compact luminaire which has been designed around the Light Visuals replaceable led board. It features a stylish design and is one of the most robust garden and landscape lighting tools available today. All components are modular and can be replaced or upgraded in the future. This product features a heavy-duty knuckle with both horizontal and vertical infinite adjustability. It comes equipped as standard with a drainage glare guard and is the perfect solution for illuminating paths trees and shrubs.

This truly is a fixture for life!

Light Visuals products are made to order. Please allow 4-6 weeks for delivery of this product, or click here to enquire about current lead times.

Spec sheet coming soon!

finish:
colour temperature:
beam angle:

• Designed, manufactured, and hand-assembled in England

• Natural copper, Solid brass or Pre-aged solid machined brass construction

• Class III (SELV)

• Wiring to be in (SERIES)

• Requires a remote (constant current) LED driver 1050mA maximum

• Forward voltage: 3.2v DC XP-L, 6v DC XHP50

• Colour temperature: 2700K, 3000K

• Light source: Cree® XP-L , XHP50 (Light Visuals interchangeable LED module)

• CRI 90+

• 80lm@350mA 150lm@700mA (Typical)

• Open circuit protection XP-L only

• Dimmable 0-10V DALI

• Beam choice; 10º, 18º, 32º, 42º, 60º interchangeable colour coded optics

• Choice of two pole lengths 300mm or 490mm. Heavy gauge poles with 3.25mm wall and internal machined threads.

• IP66

• 1m 2 core HO5RN-F rubber cable (can be supplied up to 10m at additional cost)

• 10 year warranty brass, copper, stainless steel, powder coated stainless steel

• 5 year warranty LED board

• Product code: A90PSM
