ALL PRODUCTS Twin Pole Triple Spike Light

Twin Pole Triple Spike Light

from £582.00

The Twin Pole Triple Spike Light is a compact light fitting which has been designed to stand the test of time. It is machined from either solid brass and copper, or just solid brass. Each head is fully adjustable in both horizontal and vertical orientations and uses a high-quality Cree® LED with an output of 2w, 4w or 6w, and requires a remote SERIES wired Constant Current driver. This heavy-duty luminaire comes equipped with glare guards which have been designed with internal drainage slots to eliminate water build-up on the stepped glass lens when aimed in an upward position.

The mounting pole has a very heavy wall thickness of 3.25mm and this allows for the machining of the internal threads which allows for the componentry to be securely fastened. Three durable 316 stainless steel ground spikes are attached to the robust decorative solid brass ground plate and anchor the luminaire into the ground.

This range of high-quality light fittings from Light Visuals comes with an impressive 10-year warranty on the fixture, but we confidently expect it to last for many years after the warranty has expired. All of our luminaires have been designed with circularity in mind, and all products are modular in design. Should any component fail after the warranty ends, then replacement parts can be purchased.

This truly is a fixture for life!

Light Visuals products are made to order. Please allow 4-6 weeks for delivery of this product, or click here to enquire about current lead times.

Spec sheet coming soon!

finish:
colour temperature:
beam angle:
Quantity:
Add To Basket

Twin Pole Triple Spike Light

from £582.00

The Twin Pole Triple Spike Light is a compact light fitting which has been designed to stand the test of time. It is machined from either solid brass and copper, or just solid brass. Each head is fully adjustable in both horizontal and vertical orientations and uses a high-quality Cree® LED with an output of 2w, 4w or 6w, and requires a remote SERIES wired Constant Current driver. This heavy-duty luminaire comes equipped with glare guards which have been designed with internal drainage slots to eliminate water build-up on the stepped glass lens when aimed in an upward position.

The mounting pole has a very heavy wall thickness of 3.25mm and this allows for the machining of the internal threads which allows for the componentry to be securely fastened. Three durable 316 stainless steel ground spikes are attached to the robust decorative solid brass ground plate and anchor the luminaire into the ground.

This range of high-quality light fittings from Light Visuals comes with an impressive 10-year warranty on the fixture, but we confidently expect it to last for many years after the warranty has expired. All of our luminaires have been designed with circularity in mind, and all products are modular in design. Should any component fail after the warranty ends, then replacement parts can be purchased.

This truly is a fixture for life!

Light Visuals products are made to order. Please allow 4-6 weeks for delivery of this product, or click here to enquire about current lead times.

Spec sheet coming soon!

finish:
colour temperature:
beam angle:
Quantity:
Add To Basket


• Designed, manufactured, and hand-assembled in England

• Natural copper, Solid brass or Pre-aged solid machined brass construction

• Class III (SELV)

• Wiring to be in (SERIES)

• Requires a remote (constant current) LED driver 1050mA maximum

• Forward voltage: 3.2v DC XP-L, 6v DC XHP50

• Colour temperature: 2700K, 3000K

• Light source: Cree® XP-L, XHP50 (Light Visuals interchangeable LED module)

• CRI 90+

• 80lm@350mA 150lm@700mA (Typical)

• Dimmable 0-10V DALI

• Beam choice; 10º, 18º, 32º, 42º, 60º interchangeable colour coded high efficiency PMMA TIR optics

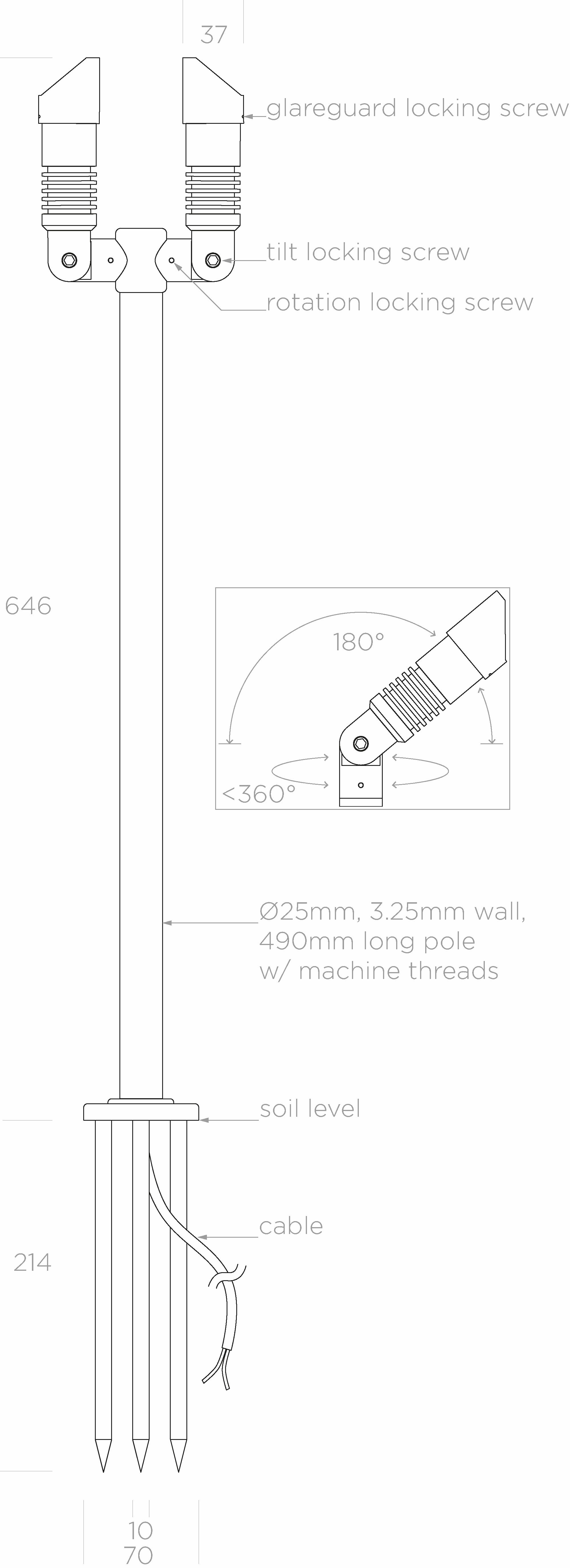

• Choice of two pole lengths 300mm or 490mm. Heavy gauge poles with 3.25mm wall and internal machined threads.

• IP67

• 1m 2 core HO5RN-F rubber cable (can be supplied up to 10m at additional cost)

• 10-year warranty brass, stainless steel, powder coated stainless steel

• 5-year warranty LED board

• Product code: LV-BR901
