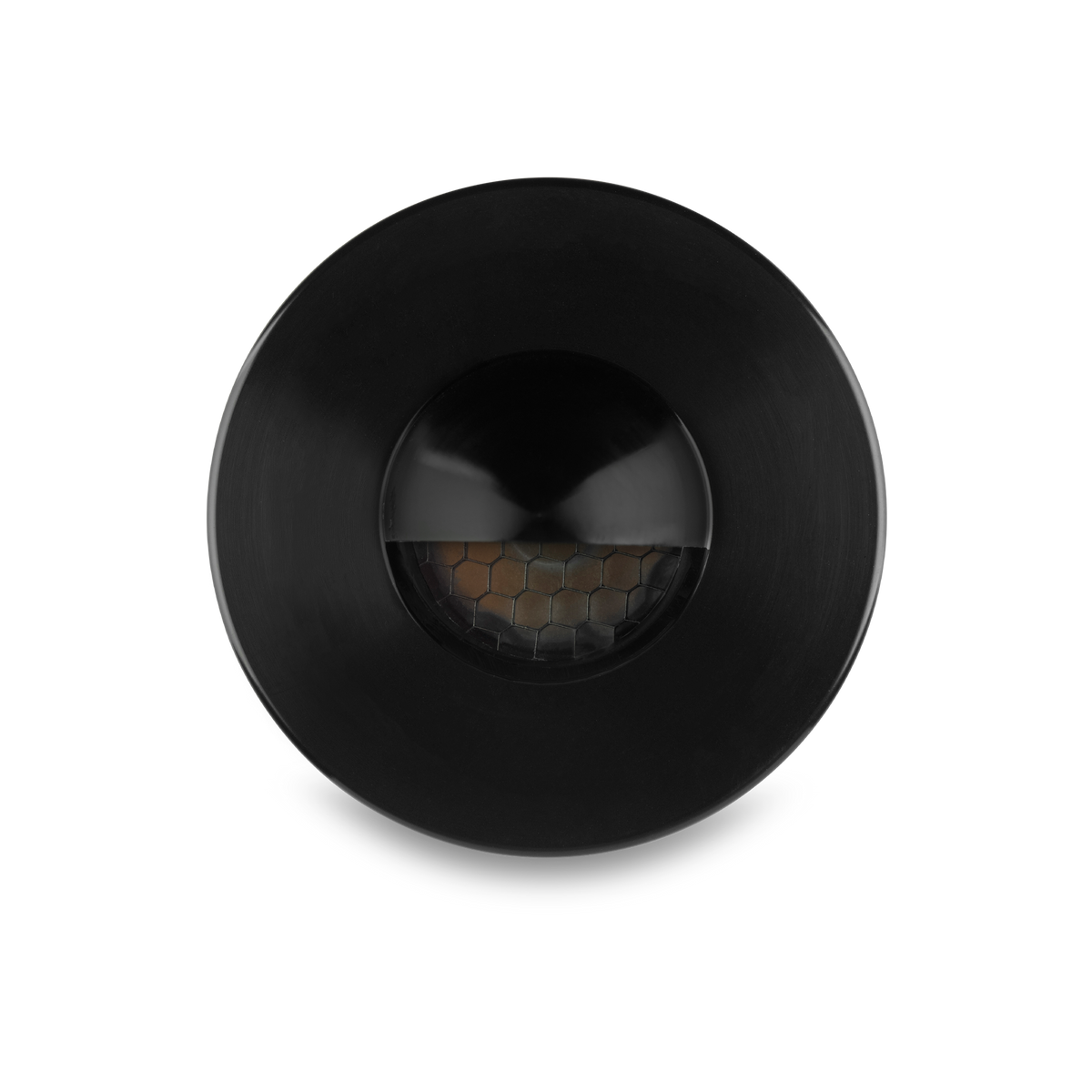

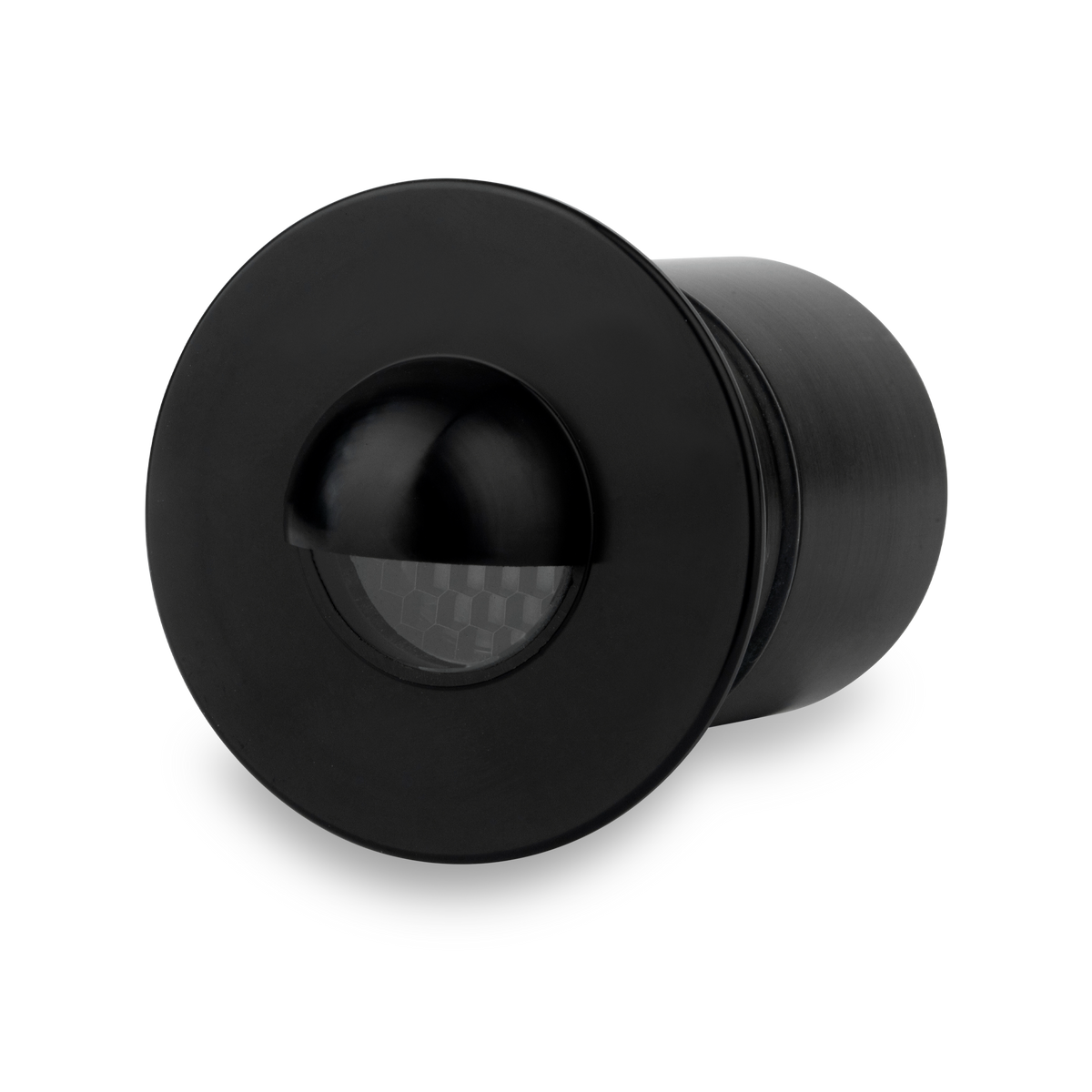

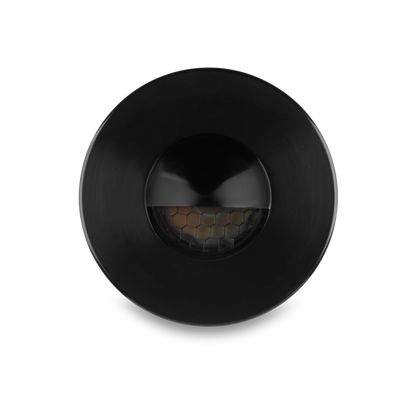

Eyelid Step Light

Light outputs are estimates, not measured photometric claims. Output varies with the selected optic and glare-control accessories.

• Product code: LV-602R
• Origin: Designed, manufactured and hand-assembled in Britain
• Material and finish: Black anodised aluminium, brass or pre-aged brass
• Protection and source: IP68; Cree XP-L; replaceable LED module
• Colour and optics: 2700K or 3000K; CRI 90+; 10°, 18°, 32° or 60°
• Current, power and output: 350 mA, nominal 1 W (actual 1.2 W), estimated 80 lm; 700 mA, 2.4 W, estimated 150 lm
• Electrical system: Class III SELV; remote constant-current driver; series wired; driver not included
• Dimming: Compatible with a suitable dimmable constant-current driver
• Cable: 1 m supplied
• Warranty: 5 years aluminium fitting; 10 years brass and pre-aged brass fitting; 5 years LED module
• Standard complete fitting: Eyelid fitting in the selected finish with PVC installation sleeve fitting
• Compatible alternatives: None

Driver selection must account for the selected drive current, total forward voltage of the series circuit and the intended dimming/control method. Electrical design and installation should be carried out by a competent person. Typical operation is 350 mA or 700 mA.

Driver not included. Requires a suitable remote constant-current LED driver. Luminaires are wired in series. Do not connect directly to a standard 12 V or 24 V constant-voltage supply.

Recess into the supplied PVC sleeve. Select the position, optic and output to illuminate the walking surface while limiting direct glare.

Detailed dimensions are available on request while our downloadable line drawings are being finalised.

• Cable: 1 m of 2-core 0.75 mm² H05RN-F rubber cable
• Dimming: suitable 0-10 V or DALI constant-current driver
