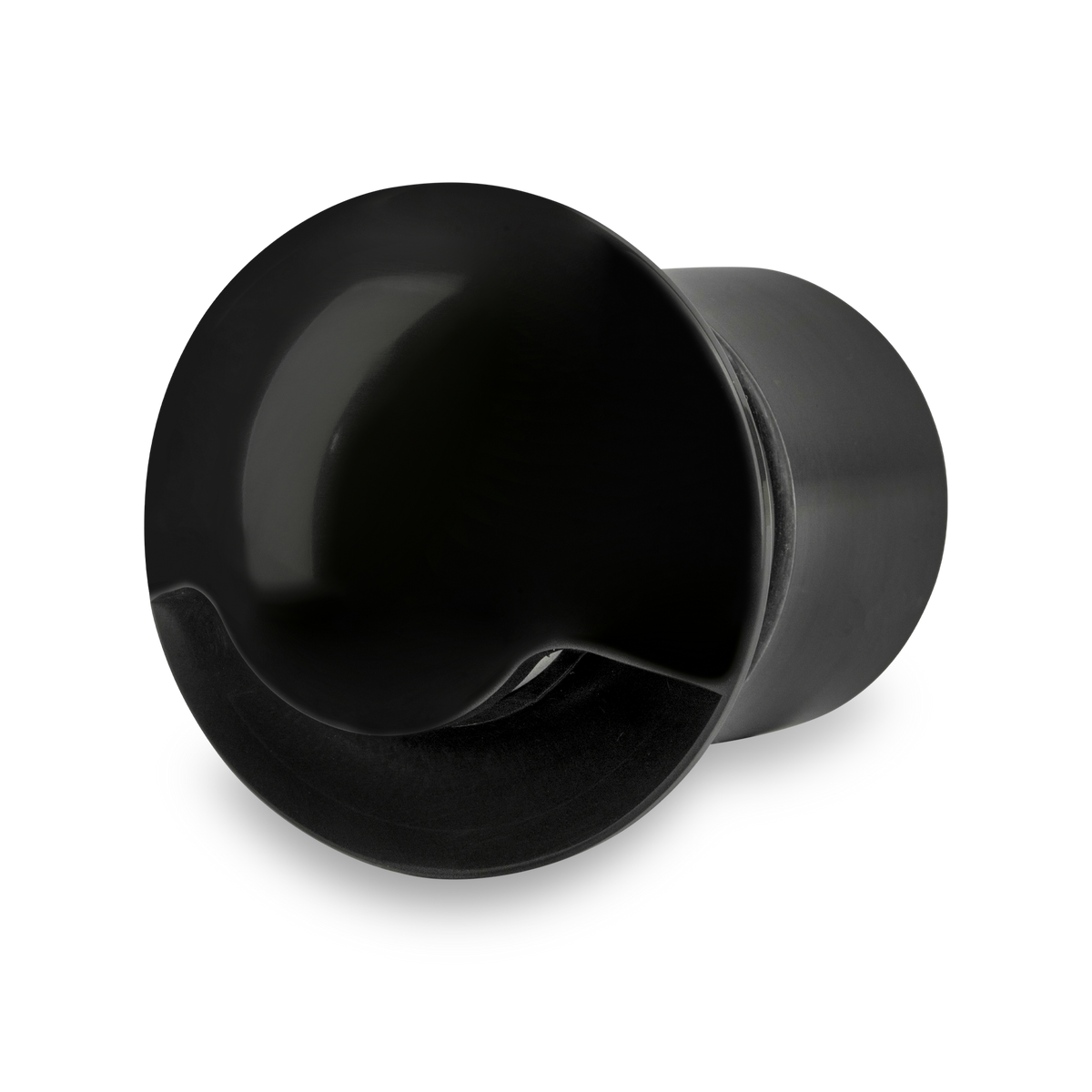

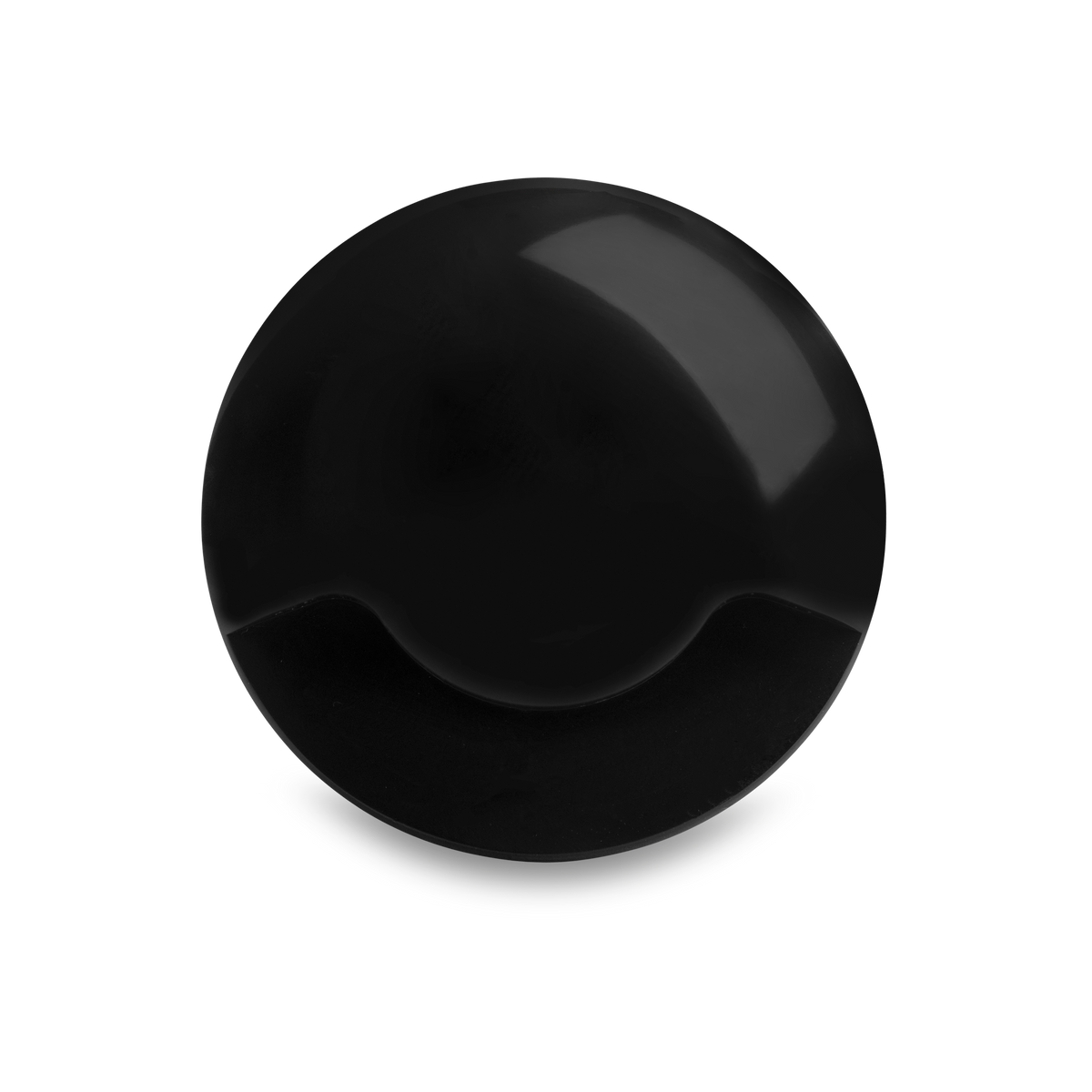

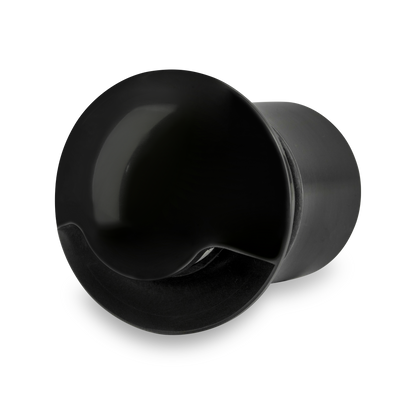

Path Marker

Light outputs are estimates, not measured photometric claims. Output varies with the selected optic and glare-control accessories.

• Origin: Designed, manufactured and hand-assembled in Britain
• Material and finish: Black anodised aluminium
• Protection and source: IP68; Cree XP-L; replaceable LED module
• Colour and optics: 2700K or 3000K; CRI 90+; Conical acrylic lens
• Current, power and output: 350 mA, nominal 1 W (actual 1.2 W), estimated 80 lm; 700 mA, 2.4 W, estimated 150 lm
• Electrical system: Class III SELV; remote constant-current driver; series wired; driver not included
• Dimming: Compatible with a suitable dimmable constant-current driver
• Cable: 1 m supplied
• Warranty: 5 years aluminium fitting; 5 years LED module
• Standard complete fitting: Path Marker with conical acrylic lens and PVC installation sleeve fitting
• Compatible alternatives: None

Driver selection must account for the selected drive current, total forward voltage of the series circuit and the intended dimming/control method. Electrical design and installation should be carried out by a competent person. Typical operation is 350 mA or 700 mA.

Driver not included. Requires a suitable remote constant-current LED driver. Luminaires are wired in series. Do not connect directly to a standard 12 V or 24 V constant-voltage supply.

Selected alternative poles or mounts can change the overall dimensions. Set the final position and aim after dark to suit the subject and normal viewing positions.

Detailed dimensions are available on request while our downloadable line drawings are being finalised.
